Electric bicycle conversion kit bafang bbs01 mid drive motor electric bike kit
We have in stock in Spain and Belgium Warehouse . if you need shipping from Spain or Belgium, please contact us in advance.

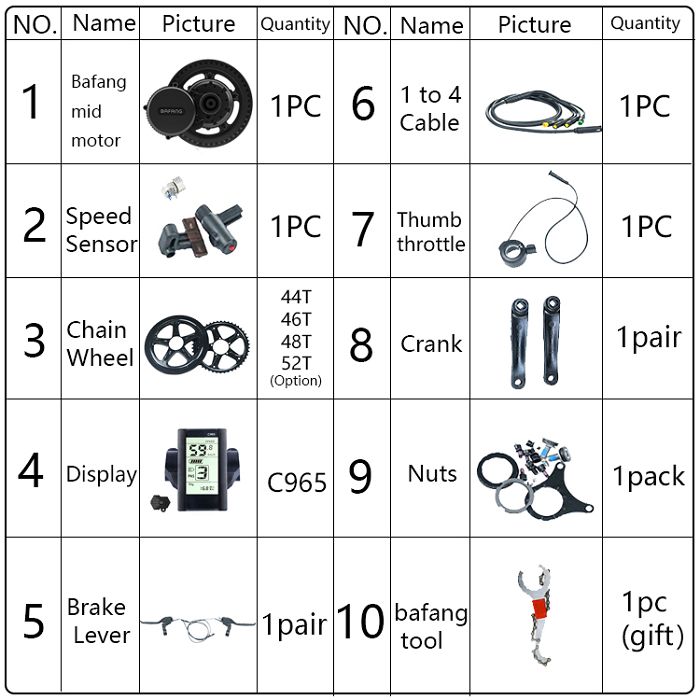

Product list
Product Paramenters
|
Motor |
36v 250w |
|
Bracket bottom length |
68mm |
|
No Load Speed(RPM) |
83-87 |
|
Load Speed(RPM) |
78-83 |
|
MAX Torque |
80 N.m |
|
Efficiency (%) |
≥ 80 % |
|
Certificate |
ROHS,CE |
|
Operating Temperature |
-20-45℃ |
|
Gross weight(kg) |
8 |
|
Package size |
250-750W: 32*25*25cm |
|
Warranty |
1 year for the motor |
|
IP |
IP65 |
|
Noise grade |
<55 |
|
Operation Temperature |
-20-45℃ |
|
Reduction Ratio |
1 : 21.9 |

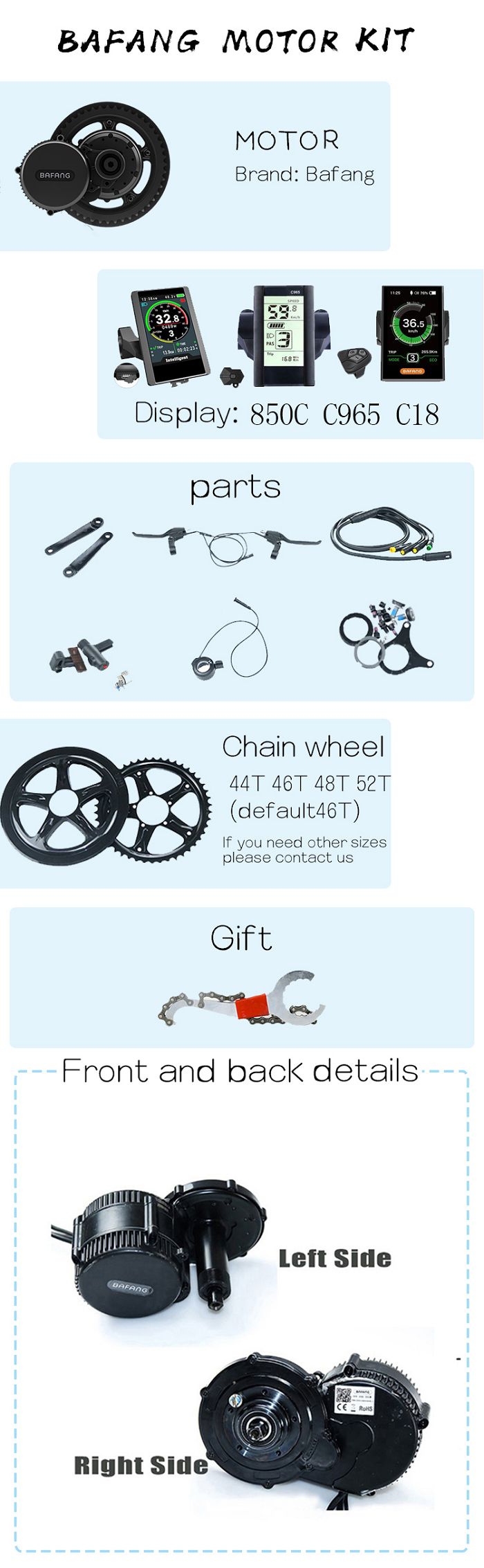

Electric bike kit
Details Images
Overview of our main production equipment
The main production equipment of our factory is at the international advanced level of the same period, and the standard is Class A. The equipment used to process the main products mainly includes:
1. Machining motor shells mainly include machining centers, flexible production lines, turning centers, pentahedral processing machines, CNC vertical eight-sided milling, CNC lathes, CNC milling machines, small horizontal machining centers, etc.
2. The main processing motor rotors are CNC vertical lathe, CNC double-sided lathe, multi-function punching machine, high-speed punching machine, wire tying machine, automatic cutting machine, CNC milling machine, CNC dynamic balancing machine, etc.
3. The main processing motor coils include wire film welding production line, CNC flat winding machine, automatic tape machine, AC and DC forming machine, etc.
4. The main processing electric control cabinets are CNC punching machine, CNC bending machine, automatic spraying production line, CNC shearing machine, automatic argon arc welding machine and so on.
The mid motor usually drives the rear wheels through a chain or gear drive to drive the vehicle forward. Normally, a mid-mounted motor of the same power can amplify the output torque with the help of a mechanical structure.
